The Indispensable Role of the C-Arm Drape (Sterile, Adhesive) in Modern Orthopedics

Comprehensive Introduction & Overview

In the intricate world of orthopedic surgery, precision and sterility are paramount. The C-Arm fluoroscope, a vital piece of imaging equipment, provides real-time radiographic visualization, guiding surgeons through complex procedures. However, introducing a non-sterile C-Arm into a sterile surgical field presents a significant challenge. This is where the C-Arm Drape (Sterile, Adhesive) becomes an indispensable tool.

A C-Arm drape is a specialized, single-use sterile barrier designed to cover the entire C-Arm unit, effectively isolating it from the sterile surgical environment. Its "adhesive" characteristic is crucial, ensuring the drape remains securely in place throughout the procedure, preventing slippage and maintaining the integrity of the sterile field. This seemingly simple device is a cornerstone of infection prevention, facilitating the seamless integration of advanced imaging technology into aseptic surgical techniques.

The evolution of sterile draping for imaging equipment has mirrored advancements in surgical techniques and infection control protocols. Early methods often involved cumbersome, non-conforming barriers. Today's sterile, adhesive C-Arm drapes are engineered with sophisticated materials and designs, offering optimal protection without compromising imaging quality or C-Arm maneuverability. They are a testament to the continuous drive for enhanced patient safety and surgical efficacy in orthopedic practices worldwide.

Deep-Dive into Technical Specifications / Mechanisms

The effectiveness of a C-Arm drape lies in its meticulously engineered design and material composition. These drapes are far more than just plastic sheets; they are precision-manufactured medical devices.

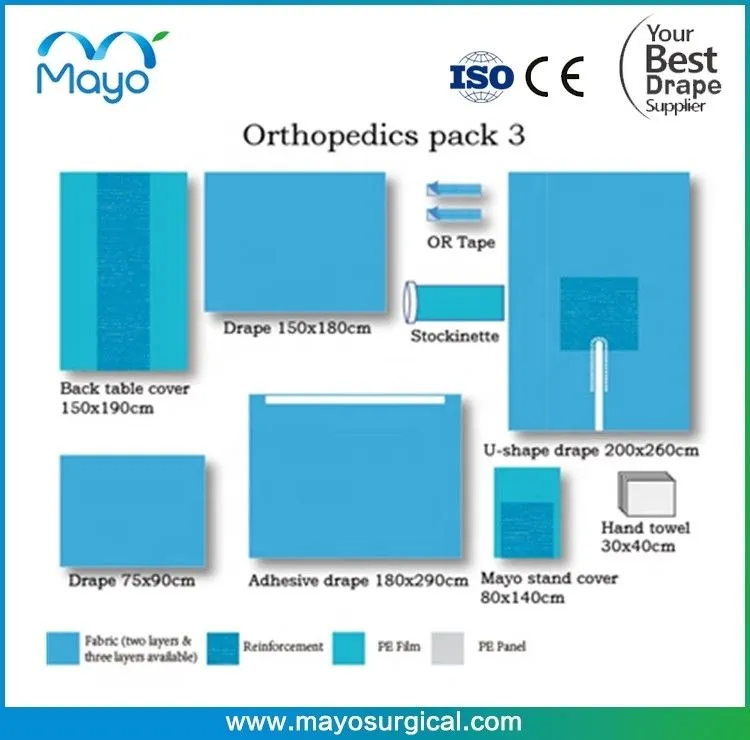

Design & Materials

Modern C-Arm drapes are constructed from a variety of advanced medical-grade materials, each chosen for specific properties:

• Polyethylene Films: Often used for the main body of the drape, offering excellent fluid repellency and a robust barrier against microbial transmission. They are lightweight yet strong.
• Non-Woven Fabrics: Multi-layered laminates combining polyethylene with non-woven materials (e.g., polypropylene) enhance tear resistance, drapeability, and often provide a softer, more fabric-like feel. This combination can also improve fluid absorption in specific areas while maintaining a barrier.
• Optical-Grade Clear Windows: The critical component covering the image intensifier and X-ray tube is typically made from highly transparent, distortion-free polyethylene or similar polymer. This ensures maximum clarity for fluoroscopic imaging without artifacts.
• Medical-Grade Adhesives: Hypoallergenic, skin-friendly adhesives are strategically placed along the drape's edges and often around the C-arm's central arc. These adhesives are designed for secure attachment to the C-arm's non-sterile surfaces, ensuring the drape remains taut and prevents migration or tenting that could compromise the sterile field.
• Reinforced Zones: Areas subjected to high stress or frequent manipulation, such as around the C-arm's articulation points or where cables might emerge, are often reinforced with stronger materials or additional layers to prevent tearing.
• Fenestrations and Access Points: Some drapes include pre-cut fenestrations or adhesive strips to facilitate the connection of C-arm cables (e.g., foot pedal) while maintaining sterility.
• Tear Resistance & Fluid Repellency: These are critical properties to prevent accidental breaches of the sterile barrier during dynamic surgical procedures.
• Sterilization Method: C-Arm drapes are supplied sterile, typically sterilized using Ethylene Oxide (EO) gas or Gamma irradiation, ensuring a validated Sterility Assurance Level (SAL).

Mechanism of Action

The C-Arm drape functions through several key mechanisms to achieve its dual purpose:

• Sterile Barrier Creation: The primary mechanism is the physical separation of the C-arm's non-sterile surfaces from the sterile operative field. The drape forms an impermeable barrier, preventing the transfer of microorganisms from the C-arm to the patient or surgical instruments.
• Unobstructed Imaging: The optically clear window ensures that X-rays can pass through and be captured by the image intensifier without significant attenuation or image distortion. The taut application of the drape prevents wrinkles or folds from obscuring the view.
• Adhesive Securement: The integrated adhesive strips provide a robust, continuous seal, preventing the drape from shifting, sagging, or exposing the non-sterile C-arm. This securement is paramount during the dynamic movements of the C-arm throughout a procedure (e.g., angulation, rotation, orbital movements).
• Flexibility and Conformability: The materials chosen allow the drape to conform closely to the complex contours of various C-arm models. This flexibility ensures that the C-arm's full range of motion is maintained, enabling surgeons to achieve optimal imaging angles without resistance from the drape.

Extensive Clinical Indications & Usage

The sterile, adhesive C-Arm drape is indispensable across a broad spectrum of orthopedic procedures where real-time fluoroscopic guidance is essential.

Orthopedic Procedures Benefiting from C-Arm Drapes:

• Fracture Reduction and Fixation:
  • Long Bones: Femur, tibia, humerus, radius, ulna fractures requiring intramedullary nailing, plate and screw fixation, or external fixation. Fluoroscopy confirms reduction and implant placement.
  • Pelvic & Acetabular Fractures: Complex reductions and screw placements are heavily reliant on C-arm imaging.
  • Spinal Fractures: Vertebral body augmentation (kyphoplasty, vertebroplasty) and spinal fusion procedures.
• Arthroplasty (Joint Replacement):
  • Hip Arthroplasty: Verifying component alignment, leg length discrepancy, and offset.
  • Knee Arthroplasty: Assessing component rotation and alignment.
  • Shoulder Arthroplasty: Confirming glenoid and humeral component positioning.
• Spinal Surgery:
  • Fusion and Decompression: Precisely placing pedicle screws, interbody cages, and confirming decompression.
  • Minimally Invasive Spine Surgery (MISS): C-arm guidance is foundational for all MISS approaches, from transforaminal lumbar interbody fusion (TLIF) to percutaneous screw fixation.
• Pain Management Injections:
  • Epidural Steroid Injections, Facet Joint Injections, Nerve Blocks: Fluoroscopy ensures accurate needle placement into specific anatomical targets.
• Arthroscopy:
  • While primarily visual, fluoroscopy can be used in complex cases to confirm guide wire placement or assess hardware.
• Trauma Surgery:
  • Rapid assessment and stabilization of multiple fractures, often in emergency settings where C-arm use is constant.

Fitting & Usage Instructions: Best Practices

Proper application of the C-Arm drape is critical to maintaining sterility and ensuring optimal imaging.

1. Pre-Application Checks:
   • Verify the integrity of the drape's sterile packaging. Do not use if torn or compromised.
   • Ensure the C-arm is clean and free of gross contaminants before draping.
   • Identify the sterile field and ensure adequate space for drape application.
2. Team Approach:
   • Typically, a sterile team member (e.g., surgical technologist) handles the sterile drape, while an unsterile team member (e.g., circulating nurse) maneuvers the C-arm.
3. Step-by-Step Application:
   • Unfold Carefully: The sterile team member carefully unfolds the drape, typically identifying the "top" or "patient end" and the "C-arm end."
   • Positioning: The drape is gently placed over the C-arm, ensuring the clear window aligns with the image intensifier and X-ray tube. The unsterile team member may need to slightly adjust the C-arm's position to facilitate this.
   • Securing Adhesive: Starting from the central arc, the sterile team member progressively peels away the backing from the adhesive strips and presses them firmly onto the C-arm's non-sterile surfaces. This creates a secure, taut fit.
   • Managing Slack: Any excess material or "slack" should be managed to prevent it from interfering with the surgical field or C-arm movement. Some drapes have elasticated sections or ties to help with this.
   • Cable Management: If the C-arm has a foot pedal or other cables that enter the sterile field, dedicated fenestrations or adhesive ports on the drape are used to maintain sterility around these connections.
4. Maintaining Sterility During Application:
   • Only sterile personnel should touch the sterile side of the drape.
   • Avoid touching the C-arm or any non-sterile surfaces with the sterile drape.
   • If the drape is compromised (torn, dropped, or contaminated), it must be replaced immediately.
5. Post-Procedure Removal and Disposal:
   • After the procedure, the drape is carefully removed by unsterile personnel, often while the C-arm is still in the room.
   • It should be folded or rolled inward to contain any potential contaminants and disposed of as biohazardous waste according to institutional protocols.

Maintenance & Sterilization Protocols (Focus on In-Use Integrity)

It is crucial to understand that C-Arm drapes are single-use, disposable items. They are supplied sterile and must never be re-sterilized or reused.

• Aseptic Technique: The primary "maintenance" protocol revolves around rigorously adhering to aseptic technique during handling, application, and throughout the surgical procedure. Any breach of the drape's integrity (tear, puncture) immediately compromises the sterile field and necessitates replacement.
• Proper Storage: Drapes should be stored in their original, intact packaging in a clean, dry environment, away from extreme temperatures or direct sunlight, to preserve their sterility and material integrity until use.
• Disposal: After use, the C-Arm drape, potentially contaminated with blood or body fluids, must be treated as biohazardous waste and disposed of according to local, national, and institutional guidelines.

Biomechanics (Indirect Impact)

While a C-Arm drape is a passive barrier, its role in facilitating accurate fluoroscopic imaging has a profound, indirect impact on the biomechanical outcomes of orthopedic surgery.

• Facilitating Precise Anatomical Alignment: In fracture fixation, the C-arm allows surgeons to visualize the fracture fragments in real-time, enabling precise reduction and restoration of anatomical alignment. This directly impacts the biomechanical stability of the construct, promoting optimal healing and load-bearing capacity. Without a sterile drape, this crucial visualization would be impossible within the sterile field.
• Ensuring Instrument Placement Accuracy: For procedures involving hardware (e.g., pedicle screws in spinal fusion, K-wires for complex hand fractures), fluoroscopy ensures accurate placement, avoiding neurovascular structures and maximizing purchase within the bone. Correct screw trajectory and depth are critical biomechanical factors for implant longevity and preventing failure.
• Allowing Dynamic Fluoroscopy: In certain cases, the C-arm can be used to assess joint stability or range of motion under dynamic loading. The drape's secure fit and optical clarity ensure that these dynamic assessments can be performed effectively without compromising sterility, providing vital information for intraoperative decision-making regarding joint function.
• Minimizing Radiation Exposure: By allowing quick, accurate positioning of the C-arm and precise imaging, the drape indirectly contributes to minimizing fluoroscopy time and, consequently, radiation exposure for both the patient and the surgical team. This efficiency is a critical aspect of modern surgical practice.
• Unimpeded C-Arm Movement: The design of quality C-arm drapes ensures that the C-arm can execute its full range of orbital, angulation, and rotational movements without resistance or tearing of the drape. This freedom of movement is essential for obtaining multi-planar views necessary for complex biomechanical assessments during surgery.

Patient Outcome Improvements

The use of sterile, adhesive C-Arm drapes directly translates into several significant improvements in patient outcomes:

• Reduced Risk of Surgical Site Infection (SSI): By maintaining a robust sterile barrier, the drape drastically reduces the risk of microorganisms from the C-arm contaminating the surgical site, thereby lowering the incidence of SSIs, which can lead to prolonged hospital stays, increased morbidity, and higher healthcare costs.
• Improved Surgical Precision and Accuracy: Real-time fluoroscopic guidance, enabled by the drape, allows surgeons to perform procedures with unparalleled accuracy, leading to better anatomical reductions, precise implant placement, and optimal surgical reconstruction.
• Shorter Operative Times: Efficient and unhindered imaging reduces the time spent on confirming anatomy or implant position, leading to shorter operative times. This, in turn, can decrease the risk of anesthesia-related complications and overall patient exposure to the operating room environment.
• Reduced Need for Revision Surgeries: Enhanced precision from fluoroscopic guidance reduces the likelihood of malunion, non-union, or improperly placed implants, thereby decreasing the need for costly and burdensome revision surgeries.
• Enhanced Patient Safety and Recovery: Collectively, these benefits contribute to a safer surgical experience, faster recovery times, and ultimately, better long-term functional outcomes for orthopedic patients.

Risks, Side Effects, or Contraindications

While C-Arm drapes are generally safe and inert, it's important to be aware of potential issues:

Risks:

• Compromised Sterility: The most significant risk is a breach in the sterile barrier due to a tear, puncture, or improper application of the drape. This can lead to contamination of the surgical field and an increased risk of SSI.
• Adhesive Residue: Rarely, poor-quality drapes or prolonged application might leave a slight adhesive residue on the C-arm, requiring cleaning post-procedure.
• Allergic Reaction: While extremely rare due to the inert nature of the materials, a patient or staff member could theoretically have a localized allergic reaction to the adhesive or plastic components.
• Improper Fit: A drape that is too loose or improperly applied can sag, obstruct imaging, or even slip off, compromising the sterile field.
• Imaging Artifacts: While modern drapes are designed to be optically clear, a poorly applied drape with significant wrinkles or folds in the imaging window can potentially cause minor artifacts in the fluoroscopic images.

Side Effects:

• C-Arm drapes are passive barriers and do not directly interact with the patient's physiology, hence direct "side effects" are virtually non-existent.

Contraindications:

• There are no absolute contraindications for the use of a C-Arm drape itself, beyond known allergies to its constituent materials (which are exceedingly rare in a clinical setting). The decision to use fluoroscopy and thus a C-arm drape is based on the surgical indication.

Massive FAQ Section

1. What is a C-Arm drape used for?

A C-Arm drape is used to create a sterile barrier around a non-sterile C-Arm fluoroscope, allowing it to be brought into the sterile surgical field. This enables real-time X-ray imaging during surgery without compromising the aseptic environment.

2. How does a C-Arm drape maintain sterility?

It maintains sterility by physically separating the non-sterile surfaces of the C-Arm from the sterile surgical field. Its impermeable materials prevent the transfer of microorganisms, and its adhesive properties ensure a secure, continuous barrier throughout the procedure.

3. Are C-Arm drapes reusable?

No, C-Arm drapes are designed for single-use only. They are supplied sterile and must be disposed of as biohazardous waste after each procedure. Reusing or attempting to re-sterilize them would compromise their integrity and sterility.

4. What materials are C-Arm drapes typically made from?

C-Arm drapes are commonly made from medical-grade polyethylene films, often laminated with non-woven polypropylene fabrics for added strength and drapeability. They feature an optical-grade clear window for imaging and medical-grade, hypoallergenic adhesives for secure attachment.

5. How is a C-Arm drape applied?

The drape is carefully unfolded by a sterile team member and positioned over the C-Arm, ensuring the clear window aligns with the imaging components. Adhesive strips are then peeled and secured to the C-Arm's surfaces to create a taut, sterile barrier. This process often involves coordinated effort between sterile and non-sterile personnel.

6. Can a C-Arm drape interfere with imaging quality?

High-quality C-Arm drapes are designed with optical-grade clear windows that minimize interference with imaging quality. However, a poorly applied drape with significant wrinkles or folds in the imaging path could potentially cause minor artifacts or slight image distortion. Proper application is key to optimal image clarity.

7. What makes an adhesive C-Arm drape different from a non-adhesive one?

The adhesive feature is critical for securement. Non-adhesive drapes rely on gravity, clips, or manual holding, which can lead to slippage, tenting, or breaches in the sterile field during C-Arm movement. Adhesive drapes provide a continuous, secure seal, ensuring the barrier remains intact and taut throughout dynamic surgical procedures.

8. Are there different sizes or types of C-Arm drapes?

Yes, C-Arm drapes come in various sizes and configurations to fit different C-Arm models (e.g., mini C-arms, standard C-arms, larger O-arms). Some may have specific features like reinforced zones, integrated cable management ports, or specialized designs for certain surgical approaches.

9. How do C-Arm drapes contribute to patient safety?

C-Arm drapes significantly enhance patient safety by preventing surgical site infections (SSIs), enabling precise surgical techniques through clear imaging, reducing operative times, and ultimately leading to better surgical outcomes and faster recovery.

10. What are the key features to look for when selecting a C-Arm drape?

Key features include: optical clarity of the window, strong yet skin-friendly adhesive, tear resistance, fluid repellency, ease of application, compatibility with the specific C-arm model, and a validated sterility assurance level.

11. How should C-Arm drapes be stored?

C-Arm drapes should be stored in their original, unopened packaging in a clean, dry environment, away from direct sunlight, extreme temperatures, and excessive humidity. This helps maintain their sterility and material integrity until the point of use.

12. What is the disposal protocol for used C-Arm drapes?

After use, C-Arm drapes are considered biohazardous waste, as they may be contaminated with blood or body fluids. They should be carefully removed, folded inwards to contain contaminants, and disposed of according to the healthcare facility's specific protocols for biohazardous medical waste.
