Radial Head Replacement

DEFINITION

Radial head fractures are the most common fracture of the elbow and usually can be managed either nonoperatively or with open reduction and internal fixation (ORIF). 12Radial head arthroplasty is indicated for unreconstructable displaced radial head fractures with an associated elbow dislocation or a known or possible disruption of the medial collateral, lateral collateral, or interosseous ligaments. 26Most comminuted radial head fractures have an associated ligament injury, so radial head excision without replacement is uncommonly indicated in the setting of an acute radial head fracture.Biomechanical studies have shown that the kinematics and stability of the elbow are altered by radial head excision, even in the setting of intact collateral ligaments, 24 and are improved with a metallic radial head arthroplasty.6,31,39Radial head replacement is also indicated to treat posttraumatic conditions such as radial head nonunion and malunion and to manage elbow or forearm instability after radial head excision. 41

ANATOMY

The radial head has a circular concave dish that articulates with the spherical capitellum and an articular margin that articulates with the lesser sigmoid notch of the ulna.The articular dish has an elliptical shape that varies considerably in size and shape and is variably offset from the axis of the radial neck. 44There is a poor correlation between the size of the radial head and the medullary canal of the radial neck, making a modular implant desirable for an optimal fit. 30Elbow stability is maintained by joint congruity, capsuloligamentous integrity, and an intact balanced musculature.The radial head is an important valgus stabilizer of the elbow, particularly in the setting of an incompetent medial collateral ligament, which is the primary stabilizer against valgus force.The radial head is also important as an axial stabilizer of the forearm and resists varus and posterolateral rotatory instability by tensioning the lateral collateral ligament. 25The lateral ulnar collateral ligament is an important stabilizer against varus and posterolateral rotational instability of the elbow 37 and should be preserved or repaired after radial head arthroplasty (FIG 1).The radial head accounts for up to 60% of the load transfer across the elbow. 19

PATHOGENESIS

Displaced radial head fractures typically result from a fall on the outstretched arm.Axial, valgus, and posterolateral rotational patterns of loading are all thought to be potentially responsible for these fractures.Injuries of the medial collateral or lateral collateral ligament or the interosseous ligament are typically associated with comminuted displaced unreconstructable radial head fractures. 9In more severe injuries, dislocations of the elbow and forearm and fractures of the coronoid, olecranon, and capitellum can occur and further impair stability.

NATURAL HISTORY

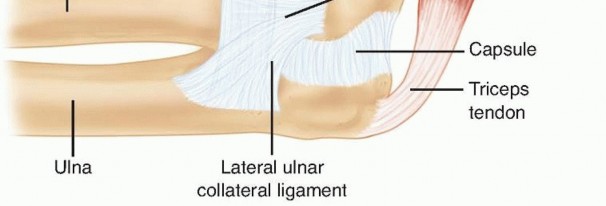

FIG 1 • The ligaments on the lateral aspect of the elbow include the lateral ulnar collateral ligament, the radial collateral ligament, and the annular ligament. The lateral ulnar collateral ligament is an important stabilizer against varus and posterolateral rotational instability of the elbow and should be preserved or repaired after radial head arthroplasty. P.175Metallic radial head replacement in elbows with intact ligaments restores the kinematics and stability similar to that of a native radial head and has been shown to provide good clinical and radiographic outcome in mostpatients at medium-term follow-up; however, long-term outcome studies are lacking. 6

PATIENT HISTORY AND PHYSICAL FINDINGS

The mechanism of injury is typically a fall on the outstretched hand.The patient will complain of pain and limitation of elbow or forearm motion. A history of forearm or wrist pain should be sought.Inspection may reveal ecchymosis along the forearm or medial aspect of the elbow. Deformity may be evident if there is an associated dislocation.Careful palpation of the radial head, the medial and lateral collateral ligaments of the elbow, the interosseous ligament of the forearm, and the distal radioulnar joint should be performed. Local tenderness over one or all of these structures implies a possible derangement of the relevant structure.Because associated injuries of the shoulder, forearm, wrist, and hand are common, these areas should be carefully examined.Range of motion, including forearm rotation and elbow flexion-extension, should be evaluated. The presence of palpable and auditory crepitus should be noted.Loss of terminal elbow flexion and extension is expected as a consequence of a hemarthrosis in acute fractures, whereas loss of forearm rotation typically is caused by a mechanical impingement.A careful neurovascular assessment of all three major nerves that cross the elbow should be performed.The examiner should observe for localized or diffuse swelling in the elbow. Effusion represents hemarthrosis due to intra-articular fracture.The examiner should compare active and passive range of motion to the uninjured side. Reduced range of motion may be a result of hemarthrosis or mechanical block from a broken fragment. Intra-articular injection of a local anesthetic helps differentiate between reduced range of motion due to a mechanical block versus pain inhibition.The examiner should look for varus-valgus instability. Any gapping on the medial or lateral side beneath the examiner's hand is noted. Positive findings suggest medial or lateral collateral ligament insufficiency. Typically, this test is positive only when performed under a regional or general anesthetic, hence these injuries are easy to miss if an examination under anesthesia is not performed.The lateral pivot shift test is performed. Positive apprehension or a clunk that is seen or felt when the ulna and radius reduce on the humerus suggests posterolateral rotatory instability.

IMAGING AND OTHER DIAGNOSTIC STUDIES

Anteroposterior (AP), lateral, and oblique elbow radiographs, with the x-ray beam centered on the radiocapitellar joint, usually provide sufficient information for the diagnosis and treatment of radial head fractures.Bilateral posteroanterior radiographs of both wrists in neutral rotation should be performed to evaluate ulnar variance in patients with wrist discomfort or a comminuted radial head fracture because there is a higherincidence of an associated interosseous ligament injury in these patients. 9Computed tomography with sagittal, coronal, and three-dimensional (3-D) reconstructions may assist with preoperative planning and can help the surgeon predict whether a displaced radial head fracture can be repaired with ORIF or if an arthroplasty will likely be needed.

DIFFERENTIAL DIAGNOSIS

Acute radial head fracturesOther fractures or dislocations about the elbow (eg, supracondylar, capitellar, coronoid, osteochondral fractures)Radial head nonunion or malunion, posttraumatic arthritis Congenital dislocation of the radial headForearm or elbow instability Lateral epicondylitisRheumatoid arthritis or osteoarthritis Synovitis, inflammatory or infectious Tumors

NONOPERATIVE MANAGEMENT

The indications for surgical management of radial head fractures are not well defined in the literature. Fragment size, number of fracture fragments, degree of displacement, and bone quality influence decision making regarding the optimal management.Nondisplaced fractures or small ( <33% of the radial head) minimally displaced fractures (<2 mm of displacement) can be treated with early motion with an excellent outcome in the majority of patients.21Associated injuries and a block to motion are also important factors to consider when deciding between nonoperative and surgical management.

SURGICAL MANAGEMENT

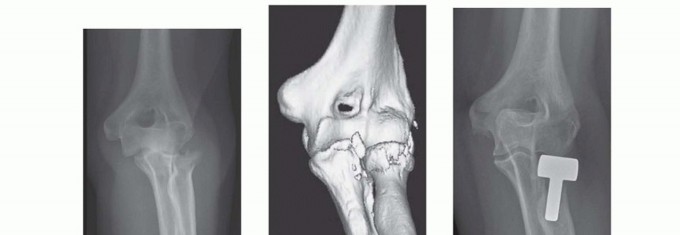

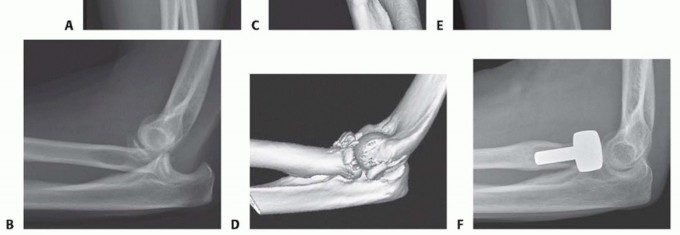

FIG 2 • A,B. AP and lateral radiographs of a 54-year-old woman who sustained a posterolateral elbow dislocation associated with a comminuted fracture of the radial head and coronoid—the “terrible triad.” C,D. Preoperative 3-D reconstruction images demonstrating a comminuted radial head fracture with a small undisplaced coronoid fracture. E,F. Postoperative radiographs after modular radial head arthroplasty (Evolve, Wright Medical Technology, Arlington, TN) and repair of the lateral collateral ligament. Medial collateral ligament and coronoid repairs were not required because the elbow was sufficiently stable at the end of the procedure. A good functional outcome was achieved at the final follow-up.

PREOPERATIVE PLANNING

Currently available devices include smooth stem spacer implants, press-fit ingrowth stems, monoblock and bipolar devices, and metallic or pyrolytic carbon articulations.Most implants have an axisymmetric circular design; however, one currently available device has a more anatomic nonaxisymmetric elliptical shape. 33,40,47Silicone radial head implants offer little in the way of axial or valgus stability to the elbow and have been complicated by a high incidence of implant wear, fragmentation, and silicone synovitis leading to generalizedjoint damage. As a result, they have fallen out of favor and have been replaced by metallic implants. 18Most metallic radial head implants that are currently available are modular with separate heads and stems, allowing improved size matching of the native radial head and neck relative to older monoblock designs. 17,28,30Precise implant sizing and placement are critical with these devices to ensure correct capitellar tracking and to avoid a cam effect with forearm rotation, which may cause premature capitellar wear due to shearing of thecartilage and stem loosening due to increased loading of the stem-bone interface. 15Preoperative radiographic templating of the contralateral normal radial head should be employed in the setting of a secondary radial head replacement but is not needed for acute fractures because the excised radial head is available for accurate implant sizing.

POSITIONING

TECHNIQUES

SURGICAL APPROACH

COMMON EXTENSOR SPLIT

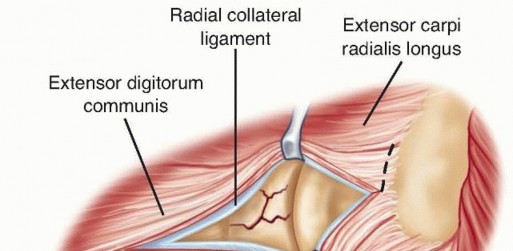

TECH FIG 2 • A. The common extensor tendon is split longitudinally at the middle aspect of the radial head, and the underlying radial collateral and annular ligaments are incised. The forearm is pronated to protect the posterior interosseous nerve.(continued)

TECH FIG 2 •(continued)B. The humeral origin of the radial collateral ligament and the overlying extensor muscles are elevated anteriorly off the lateral epicondyle to improve the exposure if needed.

Preparation of the Radial Head and Neck

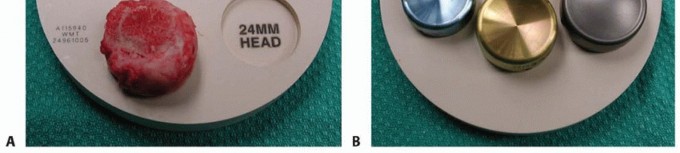

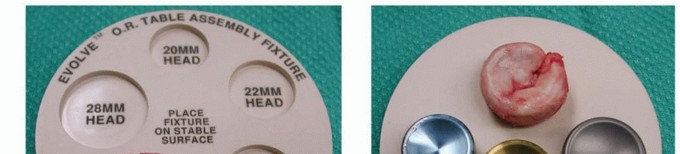

TECH FIG 3 • The resected radial head is reassembled in the provided sizing template (A) to assist in the accurate sizing of the prosthesis in terms of diameter (B) and height (C) and to ensure that all the fragments have been removed from the elbow.(continued)

TECH FIG 3 •(continued)D. The radial neck is delivered laterally using a Hohmann retractor carefully placed around the posterior aspect of the proximal radial neck. An anteriorly based retractor should be avoided because of the risk of injury to the posterior interosseous nerve.

RADIAL HEAD REPLACEMENT

TECH FIG 4 • A. A trial stem is inserted. A trial head is inserted onto the stem and the diameter, height, tracking, and congruency of the prosthesis are evaluated both visually and with the aid of an image intensifier. B. Some modular and bipolar implants allow insertion of the stem first, then placement of the head onto the stem with coupling in situ, which significantly reduces the surgical exposure needed.

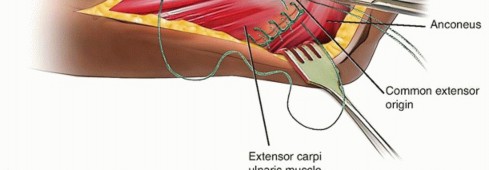

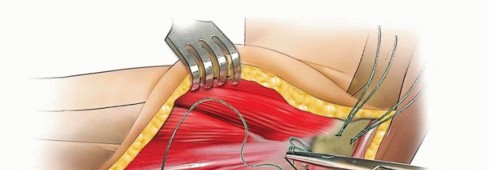

TECH FIG 5 •(continued)D. A second stitch is used in a similar manner to repair the common extensor muscle fascia. E. The sutures are pulled into the holes drilled in the distal humerus using suture retrievers, tensioned while keeping the forearm pronated and while avoiding varus forces, and eventually tied over the lateral supracondylar ridge.

COMPLETION

KOCHER APPROACH

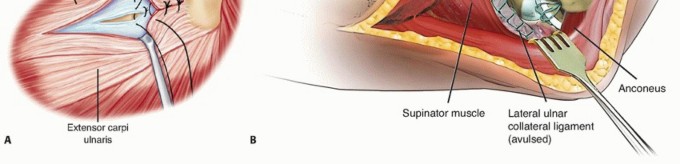

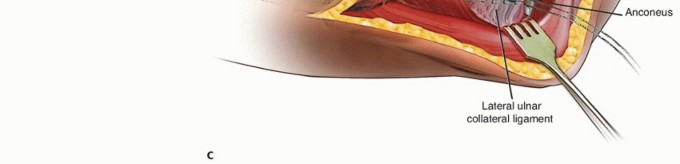

TECH FIG 6 • The extensor carpi ulnaris is elevated anteriorly, and an arthrotomy is performed at the midportion of the radial head. Care should be taken to preserve the lateral ulnar collateral ligament, which is vulnerable as the dissection is carried deeper through the capsule.

PEARLS AND PITFALLS

|Indications ▪ Displaced unreconstructable fracture of the radial head with known or probable associated medial or lateral collateral or interosseous ligament injuryPearls ▪ A preoperative radiographic template of the contralateral native radial head should be used in the setting of a secondary radial head replacement.|1.Dissection should stay anterior to the lateral ulnar collateral ligament to prevent the development of posterolateral rotatory instability.2.The radial head should be sized based on the minor diameter and thickness of the excised radial head.3.The radial head implant is typically 2 mm smaller than the major diameter of the native elliptical radial head.4.Radial head articular surface height should be at the level of the proximal radioulnar joint.5.If the radial head does not track well on the capitellum, the stem should be downsized.6.If the native radial head is in between implant sizes, the implant should, in general, be downsized.7.Intraoperative fluoroscopy is used to assess the alignment of the radiocapitellar and distal radioulnar joints and to avoid overlengthening of the radius.Pitfalls ▪ Hohmann retractors should not be used around the anterior aspect of the radial neck, and the forearm should be kept pronated to avoid damage to the posterior interosseous nerve.8.The surgeon should avoid overstuffing the thickness or diameter of the radial head because of the risk of capitellar wear and pain. Filling the gap between the capitellum and radial neck is not a useful landmark for prosthesis thickness because lateral soft tissues are often deficient owing to the surgical exposure or initial injury.

POSTOPERATIVE CARE

The elbow with stable ligaments should be splinted using anterior plaster slabs in extension and elevated for 24 to 48 hours to diminish swelling, decrease tension on the posterior wound, and minimize the tendency to develop a flexion contracture.In the setting of a more tenuous ligamentous repair or the presence of some residual instability at the end of the operative procedure, the elbow should initially be splinted in 60 to 90 degrees of flexion in the optimal position of forearm rotation to maintain stability.Perioperative antibiotics are continued for 24 hours postoperatively.Indomethacin 25 mg three times daily for 3 weeks may be considered in patients undergoing radial head arthroplasty to decrease postoperative pain, reduce swelling, and potentially lower the incidence of heterotopic ossification.Indomethacin should be avoided in elderly patients and those with a history of peptic ulcer disease, asthma, known allergy, or other contraindications to anti-inflammatory medications.For an isolated radial head replacement treated with a lateral ulnar collateral ligament-sparing approach, active range of motion should be initiated on the day after surgery.A collar and cuff with the elbow maintained at 90 degrees is employed for comfort between exercises.A static progressive extension splint is fabricated for nighttime use for patients without associated ligamentous disruptions and is employed for a period of 12 weeks. The splint is adjusted weekly as extension improves.P.183In patients with associated elbow dislocations or residual instability, extension splinting is not implemented until 6 weeks after surgery.Patients with associated fractures, dislocations, or ligamentous injuries should commence active flexion and extension motion within a safe arc 1 day postoperatively.Active forearm rotation is performed with the elbow in flexion to minimize stress on the medial or lateral ligamentous injuries or repairs.Extension is performed with the forearm in the appropriate rotational position—that is, pronation if the lateralligaments are deficient, 13 supination if the medial ligaments are deficient,2 and neutral position if both sides have been injured.A resting splint with the elbow maintained at 90 degrees and the forearm in the appropriate position of forearm rotation is employed for 3 to 6 weeks.Passive stretching is not permitted for 6 weeks to reduce the incidence of heterotopic ossification.Strengthening exercises are initiated once the ligament injuries and any associated fractures have adequately healed, usually at 8 weeks postoperatively.

OUTCOMES

Silicone radial head arthroplasty, although initially successful in many patients, 8,42 has fallen out of favor because of problems with residual instability and arthritis, implant fracture, and silicone synovitis due to particulate debris.45Although the short- and medium-term results of metallic radial head implants are encouraging, there is a paucity of literature demonstrating the long-term outcome with respect to loosening, capitellar wear, and arthritis. 14,17Metallic radial head replacement in elbows with intact ligaments restores the kinematics and stability similar to that measured with a native radial head. Moreover, when the fractured radial head occurs in combination with ligamentous and soft tissue disruption, a metallic prosthesis restores elbow stability, with only mild residual deficits in strength and motion.Results appear to be better if surgery is performed early ( <10 days from injury).3,34Moro et al 36 reported the functional outcome of 25 cases managed with a metallic radial head arthroplasty for unreconstructable fractures of the radial head at an average follow-up of 39 months. The results were rated as 17 good or excellent, 5 fair, and 3 poor.The radial head prosthesis restored elbow stability when the fractured radial head occurred in combination with a dislocation of the elbow, rupture of the medial collateral ligament, fracture of the coronoid, or fracture of the proximal ulna.There were mild residual deficits in strength and motion, and no patient required removal of the implant.Grewal et al 17 reported high satisfaction rate among 26 patients, 2 years following a modular, monopolar radial head arthroplasty with a loose press-fit stem for unreconstructable radial head fractures.Zunkiewicz et al 47 reported good functional outcome in 29 patients managed with a bipolar radial head prosthesis with a smooth unfixed telescoping stem with an average follow-up of 34 months. Theprosthesis effectively restored stability and joint congruency to elbows with comminuted radial headfractures and valgus instability.Flinkkilä et al 15 reported high failure rate and early loosening of press-fit radial head implants which were used in acute unstable elbow injuries, 12 of 37 press-fit stems were radiographically loose at a mean follow-up of 11 months, with 9 of them necessitating implant removal.Harrington et al 20 reported their experience with metallic radial head arthroplasty in 20 patients at an average follow-up of 12 years. The results were excellent or good in 16 and fair or poor in 4.Improvements in radial head arthroplasty designs, sizing, and implantation techniques may lead to improved outcomes for unreconstructable radial head fractures.

COMPLICATIONS

Posterior interosseous nerve injury can occur as a consequence of dissection distal to the radial tuberosity and placement of anterior retractors around the distal radial neck.InfectionLoss of motion, mainly terminal extension due to capsular contracture, heterotopic ossification, or retained cartilaginous or osseous fragmentsProsthetic loosening, failure or polyethylene wear 15,43 Capitellar wear and pain due to implant overstuffing Complex regional pain syndromeInstability or recurrent dislocations of the elbow due to an inadequate or failed ligament repairOsteoarthritis of the capitellum as a consequence of articular cartilage damage from the initial injury, from component insertion, from persistent instability, or due to loading from a radial head implant that is too thick
