Oblique Tibial Osteotomy: Surgical Technique & Protocol

13 Apr 2026 18 min read 0 Views

Key Takeaway

The oblique tibial osteotomy is a powerful surgical technique for correcting complex multiplanar tibial malunions. By utilizing a femoral distractor and precise Schanz pin placement parallel to the proximal and distal articular surfaces, surgeons can achieve simultaneous angular correction and axial lengthening. This comprehensive guide details the preoperative planning, step-by-step surgical execution, and postoperative rehabilitation protocols essential for optimal patient outcomes.

INTRODUCTION TO OBLIQUE TIBIAL OSTEOTOMY

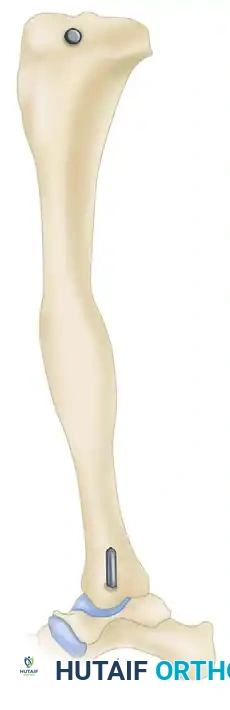

Tibial malunions present a complex reconstructive challenge, frequently involving multiplanar deformities—varus or valgus angulation, procurvatum or recurvatum, rotational malalignment, and axial shortening. The oblique tibial osteotomy, popularized by Sanders et al., is an elegant, highly effective, and biomechanically sound surgical technique designed to address these concurrent deformities through a single osteotomy site.

By utilizing a femoral distractor applied to strategically placed Schanz pins, the surgeon can achieve simultaneous angular correction and axial lengthening. The fundamental principle relies on the geometric relationship between the osteotomy plane and the axis of distraction, allowing the bone segments to slide along the osteotomy cut while maintaining cortical contact, thereby facilitating primary bone healing and immediate structural stability.

This masterclass provides an exhaustive, step-by-step guide to the oblique tibial osteotomy, detailing preoperative planning, precise surgical execution, and evidence-based postoperative protocols.

PREOPERATIVE PLANNING AND BIOMECHANICS

Successful execution of an oblique tibial osteotomy requires meticulous preoperative templating. The surgeon must quantify the exact degree of angular deformity in the coronal and sagittal planes, the rotational profile, and the leg length discrepancy (LLD).

Deformity Analysis

  1. Mechanical Axis Evaluation: Full-length, standing anteroposterior (AP) and lateral radiographs of both lower extremities are mandatory. The Center of Rotation of Angulation (CORA) must be identified.
  2. Osteotomy Angle Calculation: The angle of the osteotomy in the coronal plane dictates the ratio of angular correction to axial lengthening.
  3. Templating: Using angle templates, the exact trajectory of the saw cut is mapped. If pure angular correction is required without lengthening, an angle of 30 to 45 degrees in the coronal plane is optimal to provide sufficient surface area for interfragmentary lag screw fixation. If axial lengthening is required, the angle between the osteotomy and the tibial axis must be decreased to allow the segments to slide apart lengthwise while remaining in contact.

Clinical Pearl: Cuts made at angles of less than 20 degrees to the coronal axis are technically impossible to perform with standard oscillating saws and fail to provide adequate cortical contact for stable fixation.

PATIENT POSITIONING AND PREPARATION

Optimal positioning and neuromonitoring are critical, particularly when axial lengthening is planned, as stretching of the peroneal and tibial nerves poses a significant risk.

  1. Neuromonitoring: If axial lengthening is planned, place electrodes for the continuous measurement of somatosensory evoked potentials (SSEPs) prior to prepping.
  2. Positioning: Place the patient supine on a radiolucent operating table.
  3. Tourniquet Application: Place a pneumatic tourniquet on the proximal part of the thigh.
  4. Draping: Prepare and drape both legs entirely free. This allows for real-time intraoperative clinical comparison of length, alignment, and rotation after the correction is achieved.

SURGICAL TECHNIQUE: STEP-BY-STEP EXECUTION

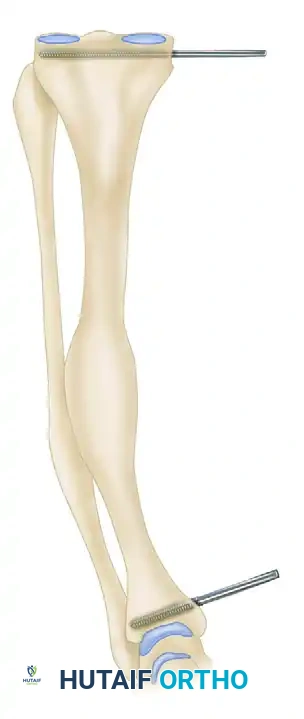

1. Schanz Pin Placement

The entire geometry of the correction relies on the precise placement of the proximal and distal Schanz pins. These pins act as the reference axes for the femoral distractor.

  • Under strict fluoroscopic control, insert a 6-mm Schanz pin into the proximal tibial metaphysis. This pin must be absolutely parallel to the proximal tibial articular surface in the coronal plane.


  • Similarly, place a second 6-mm Schanz pin into the distal tibial metaphysis. This pin must be absolutely parallel to the tibial plafond.


2. Fibular Osteotomy

The intact fibula acts as a lateral tether, preventing both angular correction and axial lengthening.
- If lengthening is planned, or if the fibula interferes with the correction of the tibia, perform an oblique fibular osteotomy.
- Ideally, this should be executed at the exact level of the proposed site of the tibial osteotomy to allow harmonious translation.

3. Surgical Exposure of the Tibia

  • Exsanguinate the operative leg with an Esmarch or pressure bandage.
  • Inflate the proximal thigh tourniquet to 300 mm Hg (39.99 kPa) and remove the pressure bandage.
  • Make a standard anterior extensile incision over the tibial crest to expose the diaphysis.
  • Identify the area of malunion. Perform a meticulous subperiosteal dissection to elevate all soft tissues from the area.
  • Place Hohmann retractors medially and laterally to protect the neurovascular structures during the saw cut.

4. Callus Resection and Bone Graft Harvesting

  • While the tibia is still structurally intact, sculpt the bone to remove excess malunion callus.
  • Crucial Step: Save all removed bone. This autologous bone will be used later as a local graft to pack around the osteotomy site, enhancing osteogenesis.

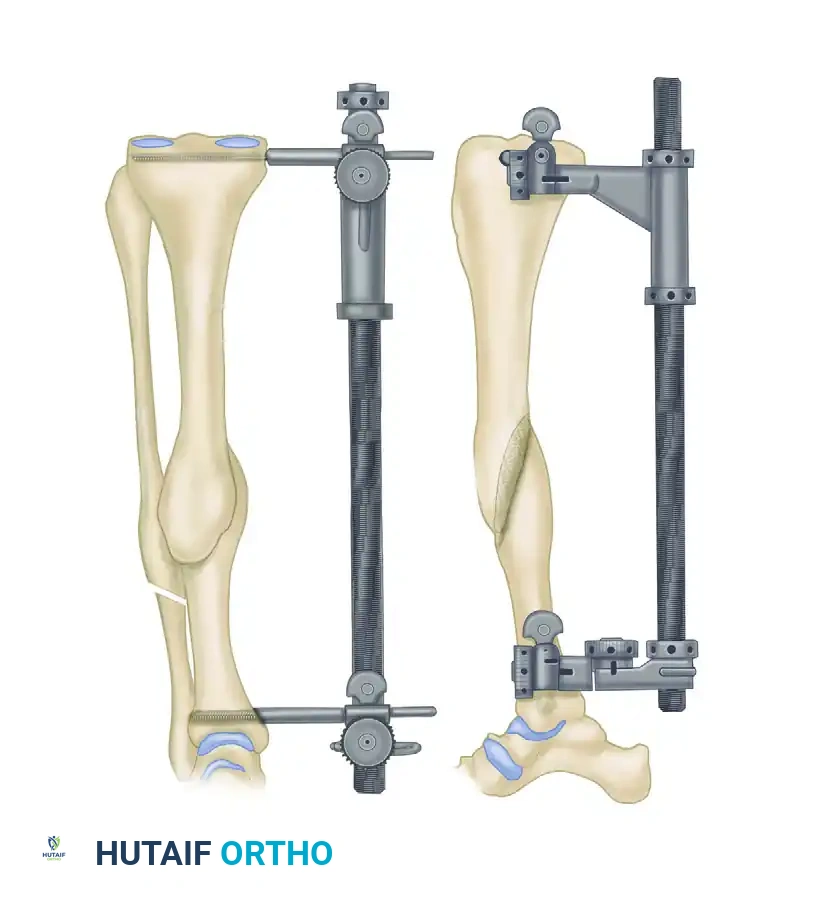

5. Application of the Femoral Distractor

  • Apply a femoral distractor (e.g., Synthes USA, Paoli, PA) over the previously placed 6-mm Schanz pins.
  • Distractor Configuration: Lock the universal joint of the distractor, but leave the rotational joint open. This specific configuration is the biomechanical key to the procedure, allowing translation and rotation during distraction.

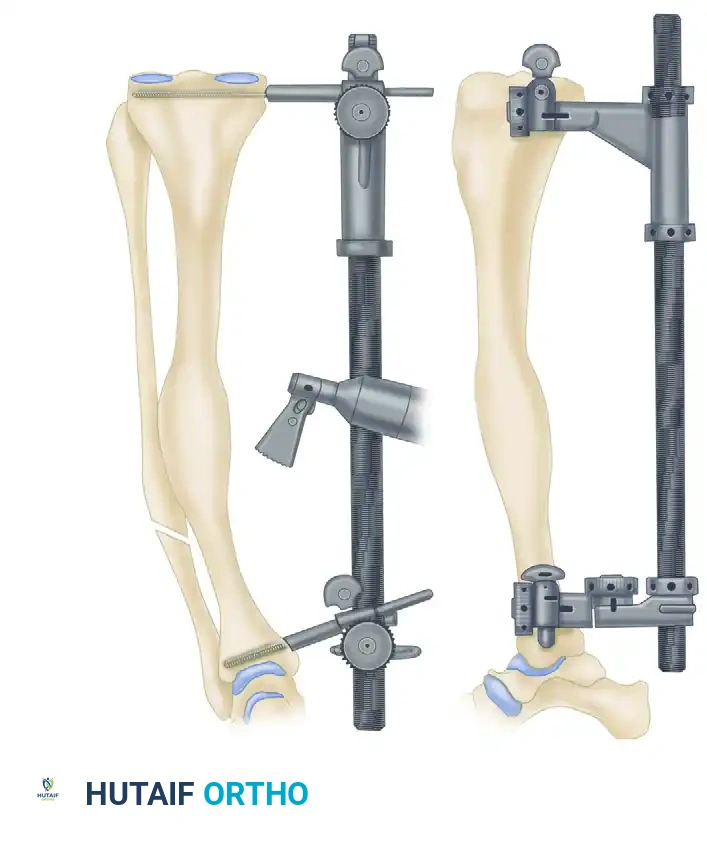

6. The Oblique Tibial Osteotomy

  • Make the tibial osteotomy with a single, clean cut perpendicular to the plane of maximal deformity.
  • If lengthening is NOT needed: Hold the oscillating saw at an angle of 30 to 45 degrees in the coronal plane. This ensures enough bone on either side of the cut to overlap and be lagged together securely.
  • If lengthening IS needed: The exact amount of axial lengthening (in millimeters) must have been determined preoperatively. Obtain this length by decreasing the angle between the osteotomy and the axis of the tibia in the coronal plane. This allows the bones to slide apart lengthwise at the cut while remaining in intimate contact.
  • Mark the preoperatively determined angle on the bone using a sterile marking pen and angle templates from an angled blade plate instrument set. Rotate the saw to this exact angle in the coronal plane and execute the cut.

Surgical Warning: Copious saline irrigation must be used during the saw cut to prevent thermal necrosis of the bone, which can lead to nonunion.

7. Deformity Correction via Distraction

  • Begin lengthening the femoral distractor. Because the rotational joint is left open, the axial lengthening mechanically translates into angular correction.
  • This setup allows simultaneous correction of the multiplanar deformity by rotating the two tibial segments around an axis perpendicular to the cut surface.
  • Continue this gradual correction until the proximal and distal Schanz pins are perfectly parallel to each other.


  • Inspect the osteotomy surfaces. If the cut is not perfectly flush, use a high-speed burr or saw to shave additional bone from the cut surfaces to ensure perfect cortical apposition and alignment.

8. Axial Lengthening (If Indicated)

If axial lengthening is required beyond the angular correction:
- Use a bone reduction forceps with pointed tips (Weber clamp) to hold the two cut surfaces together.
- Lock the rotational joint of the distractor.
- Additional lengthening of the distractor will now lengthen the tibia purely in the axial plane.
- Gently loosen the bone clamp just enough to allow sliding in the axial plane, while maintaining enough tension to prevent translation and loss of the achieved angular correction.

Surgical Pitfall - Neurologic Compromise: Monitor the SSEPs continuously during axial lengthening. If the somatosensory evoked potentials change or drop from baseline, immediately stop the lengthening process and reverse the distractor until the potentials return to normal. Nerve ischemia from acute stretching is a devastating complication.

9. Radiographic Verification

  • Once the desired lengthening and angular correction are completed, tighten the bone clamp and lock all distractor joints.
  • Obtain orthogonal AP and lateral fluoroscopic images or radiographs.
  • Superimpose these images on the preoperative templating drawings and compare them clinically and radiographically to the normal contralateral leg. Make micro-adjustments as needed.

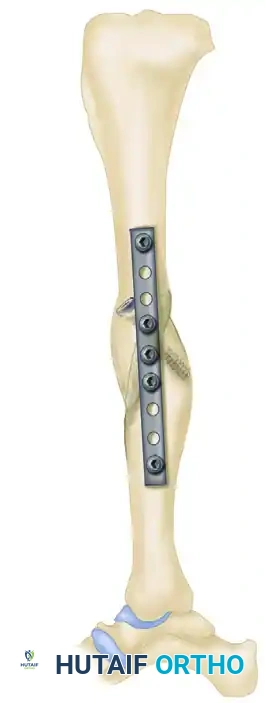

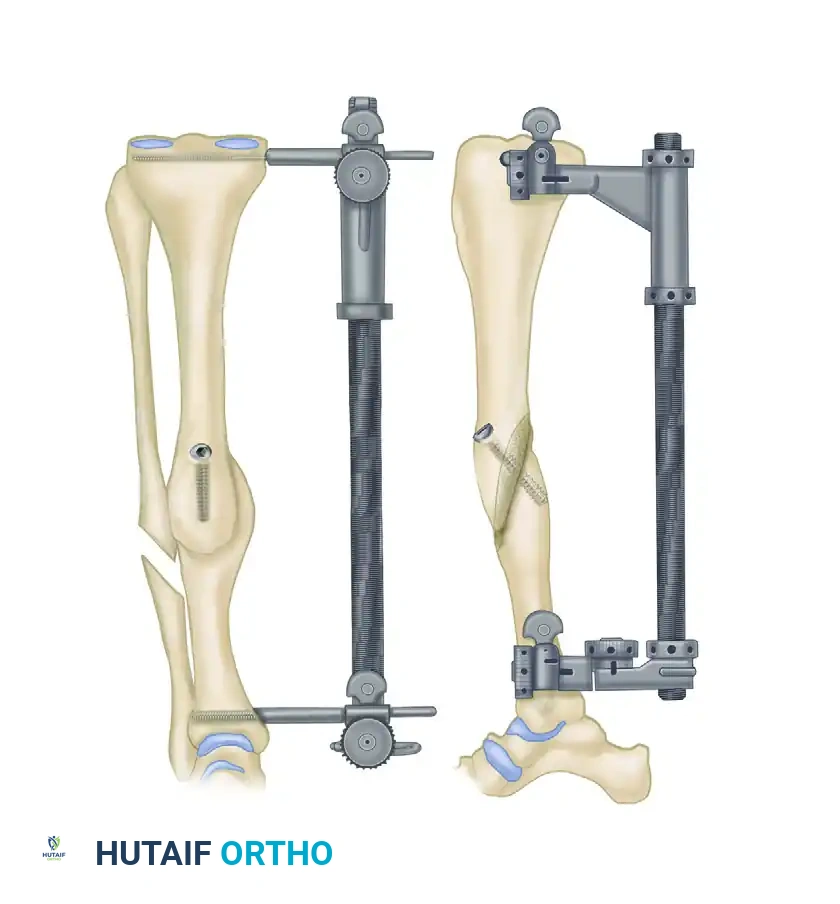

10. Internal Fixation

  • When alignment, rotation, and length are deemed satisfactory, place a 4.5-mm cortical lag screw perpendicularly across the osteotomy site to achieve absolute stability and interfragmentary compression.


  • Contour a narrow 4.5-mm dynamic compression plate (DCP) or locking compression plate (LCP) to the surface of the tibia.
  • Apply the plate in a neutralization mode to protect the lag screw from torsional, bending, and shear forces.



11. Grafting and Soft Tissue Balancing

  • Take the bone shavings and callus resected earlier in the procedure and pack them meticulously around the osteotomy site as an autologous bone graft.
  • Assess ankle dorsiflexion. If an equinus contracture has developed secondary to the axial lengthening of the bone (stretching the gastrocnemius-soleus complex), perform a formal Z-lengthening of the Achilles tendon.

12. Closure

  • Remove the femoral distractor and the Schanz pins.
  • Deflate the tourniquet and achieve meticulous hemostasis.
  • Insert a closed suction drain.
  • Close the periosteum, subcutaneous tissue, and skin in layers.
  • Apply a bulky Robert Jones dressing reinforced with a below-knee posterior splint to control the foot and ankle.

POSTOPERATIVE CARE AND REHABILITATION

The postoperative protocol is designed to balance the need for early joint mobilization with the protection of the osteotomy fixation.

Immediate Postoperative Phase (Days 0-3)

  • Mobilization: Range of motion (ROM) of the knee and ankle (0 to 90 degrees) is initiated immediately after surgery using a continuous passive motion (CPM) machine.
  • Weight Bearing: The patient is allowed out of bed on the first postoperative day, strictly non-weight-bearing (NWB) on the operative extremity.
  • Drain Management: The closed suction drain is removed when output is less than 10 mL in an 8-hour period, which typically occurs by postoperative day 2.
  • Wound Care: The bulky Robert Jones dressing is removed on day 3. If the surgical wound appears clean, dry, and satisfactory, a below-knee fiberglass cast is applied.

Short-Term Rehabilitation (Weeks 1-12)

  • Weight Bearing Status: Once the cast is applied, the patient is transitioned to touch-down weight bearing (TDWB) with crutches or a walker.
  • Discharge: The patient is discharged from the hospital once they are medically stable, pain is controlled, and they can ambulate independently with assistive devices.
  • Suture Removal: At 10 to 14 days postoperatively, the cast is bi-valved, sutures or staples are removed, and a new, well-molded below-knee cast is applied.
  • Clinical Follow-up: Serial radiographs are obtained at 4, 8, and 12 weeks to monitor callus formation and maintenance of alignment.

Long-Term Rehabilitation (Months 3+)

  • Bracing: At 10 to 12 weeks, provided there is radiographic evidence of bridging trabeculae across the osteotomy site, the cast is removed. The patient is fitted with a custom removable functional tibial brace.
  • Progressive Weight Bearing: Weight bearing is progressively advanced based on radiographic healing. Full weight bearing is typically achieved between 3 to 4 months postoperatively.
  • Physical Therapy: Aggressive physical therapy is initiated to restore full lower extremity strength, proprioception, and normal gait mechanics.

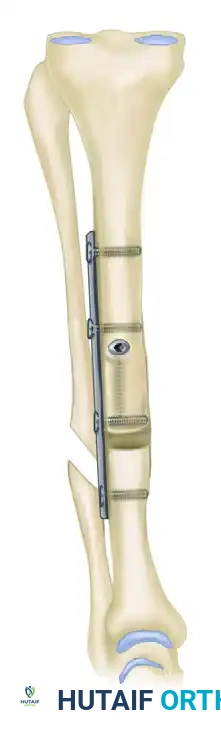

ALTERNATIVE TECHNIQUES: THE CLAMSHELL OSTEOTOMY

While the oblique tibial osteotomy is highly effective for specific multiplanar deformities, other techniques may be indicated depending on the location and nature of the malunion.

For complex diaphyseal deformities where an oblique cut may not provide adequate correction or stability, the Clamshell Osteotomy, as described by Russell et al., serves as a powerful alternative. This technique involves an intra-medullary approach combined with longitudinal and transverse osteotomies to "open" the bone, correct the deformity over an intramedullary nail, and utilize the bone's own cortical shell as an autograft.


The plane of the longitudinal portion of the clamshell osteotomy for the tibia is typically made approximately parallel to the medial face of the tibia, allowing for multi-directional correction while maintaining the periosteal hinge.


CONCLUSION

The oblique tibial osteotomy remains a cornerstone technique in the armamentarium of the reconstructive orthopedic surgeon. By adhering strictly to the biomechanical principles of Schanz pin placement, utilizing the femoral distractor for controlled multiplanar correction, and applying rigid internal fixation with a lag screw and neutralization plate, surgeons can reliably restore mechanical alignment, correct leg length discrepancies, and achieve excellent functional outcomes for patients suffering from complex tibial malunions. Meticulous preoperative planning and vigilant postoperative care are paramount to avoiding complications and ensuring successful bone union.
